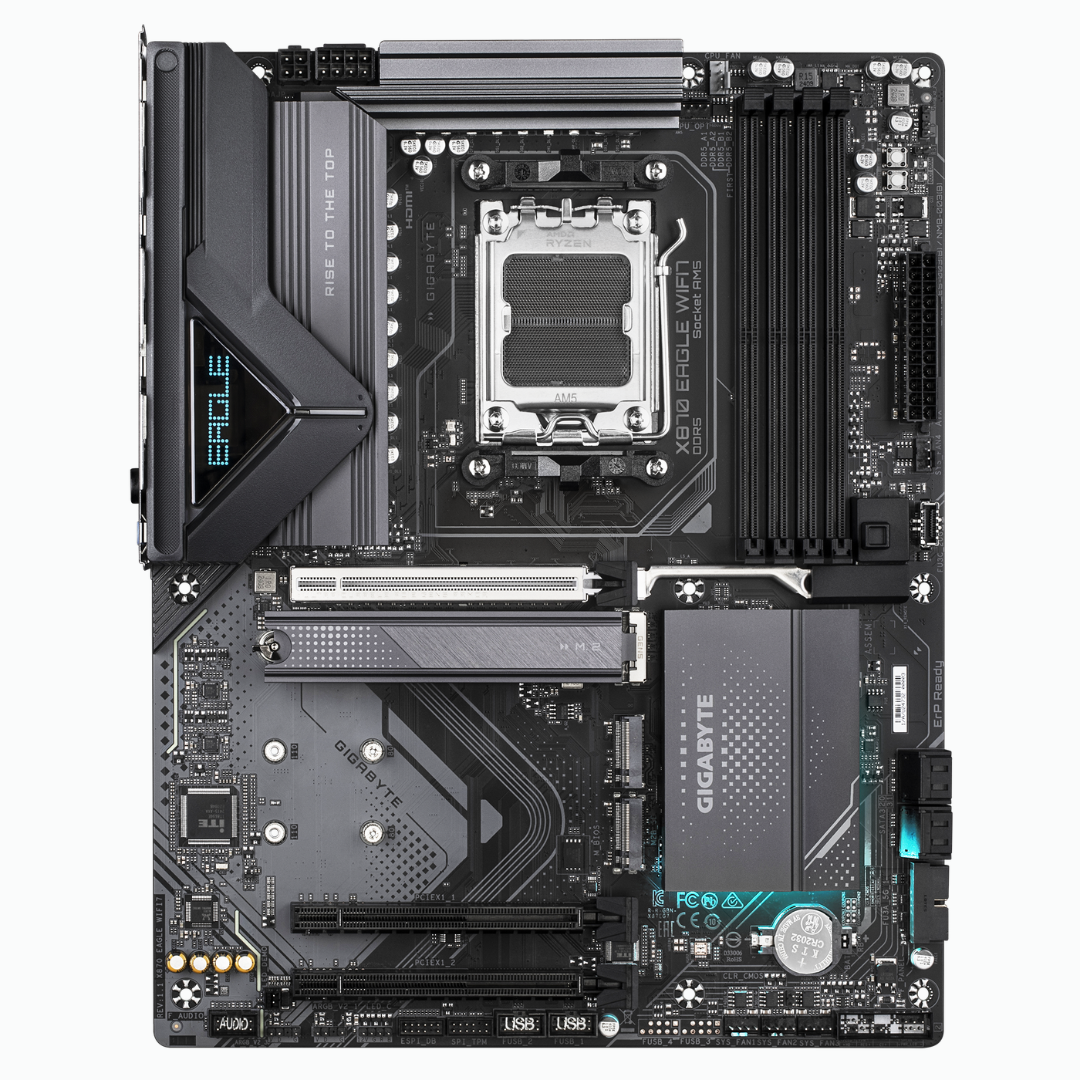

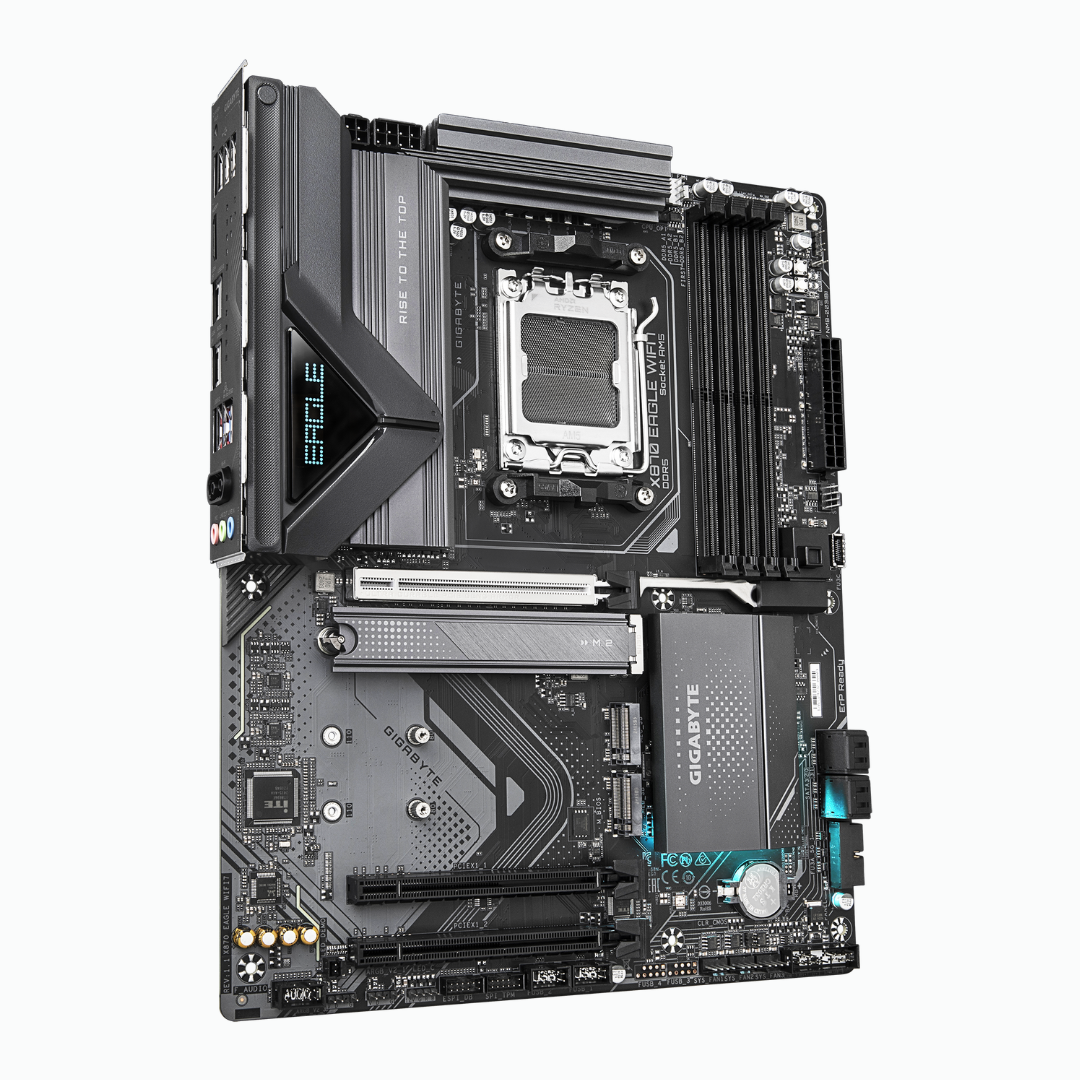

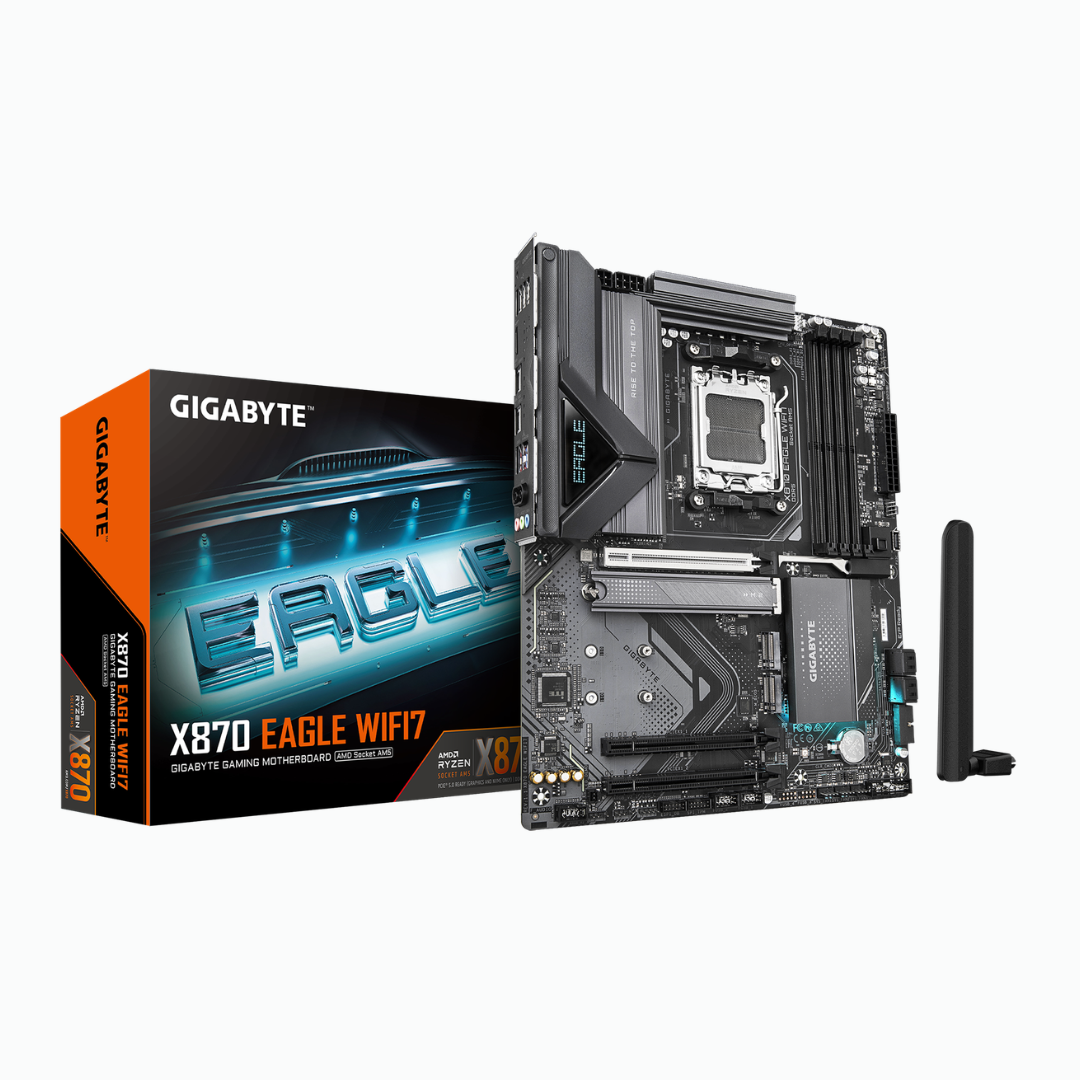

Placa Madre Gigabyte X870 EAGLE WIFI7 (Rev 1.1)
$279.000 El precio original era: $279.000.$242.900El precio actual es: $242.900.
| Webpay Plus | $247.758 |
| Linkify - Transferencia electrónica | $242.900 |
| Mercado Pago | $250.187 |
- Socket AM5 de AMD: compatible con procesadores AMD Ryzen™ de las series 9000/8000/7000
En stock
SKU: 889523045312
Categorías: Placa Madre, AM5, AMD, Placas PC Armado
|
Procesador |
AMD Socket AM5, support for: |
| AMD Ryzen™ 9000 Series Processors/ | |
| AMD Ryzen™ 8000 Series Processors/ | |
| AMD Ryzen™ 7000 Series Processors | |
| (Go to GIGABYTE’s website for the latest CPU support list.) | |
|
Chipset |
AMD X870 |
|
Memoria |
Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
| 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) | |
|
Gráfica Integrada |
|
|
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: |
|
| – 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz | |
| * Support for DisplayPort 1.4 version and HDR. | |
| Integrated Graphics Processor with AMD Radeon™ Graphics support: | |
| – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
| * Support for HDMI 2.1 version, HDCP 2.3, and HDR. | |
| ** Support native HDMI 2.1 TMDS compatible ports. | |
| (Graphics specifications may vary depending on CPU support.) | |
|
Audio |
Realtek® Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
|
LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
Módulo de comunicaciones inalámbricas |
|
|
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) |
|
| – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| – BLUETOOTH 5.4 | |
| – Support for 11be 160MHz wireless standard | |
| Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) | |
| – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| – BLUETOOTH 5.4 | |
| – Support for 11be 160MHz wireless standard | |
| (Actual data rate may vary depending on environment and equipment.) | |
| * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) | |
| ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations. | |
|
Zócalos de Expansión |
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode | |
| AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode | |
| AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| – 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) | |
|
|
|
| Interfaz de almacenamiento |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: |
| AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs | |
| AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs | |
| AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
| 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs | |
| 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs | |
| * The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2B_SB connector operates at up to x2 mode when a PCIe SSD is installed in the M2C_SB connector. | |
| 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
| * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. | |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
|
USB |
CPU+ASMedia USB4® controller: |
| – 2 x USB4® USB Type-C® ports on the back panel | |
| CPU: | |
| – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
| – 1 x USB 3.2 Gen 1 port on the back panel | |
| CPU+USB 2.0 Hub: | |
| – 4 x USB 2.0/1.1 ports on the back panel | |
| Chipset: | |
| – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header | |
| – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| – 4 x USB 2.0/1.1 ports available through the internal USB headers | |
|
|
|
| Conectores Internos E/S |
1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x 4-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 4 x system fan headers | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 4 x SATA 6Gb/s connectors | |
| 3 x M.2 Socket 3 connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x power button | |
| 1 x reset button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
|

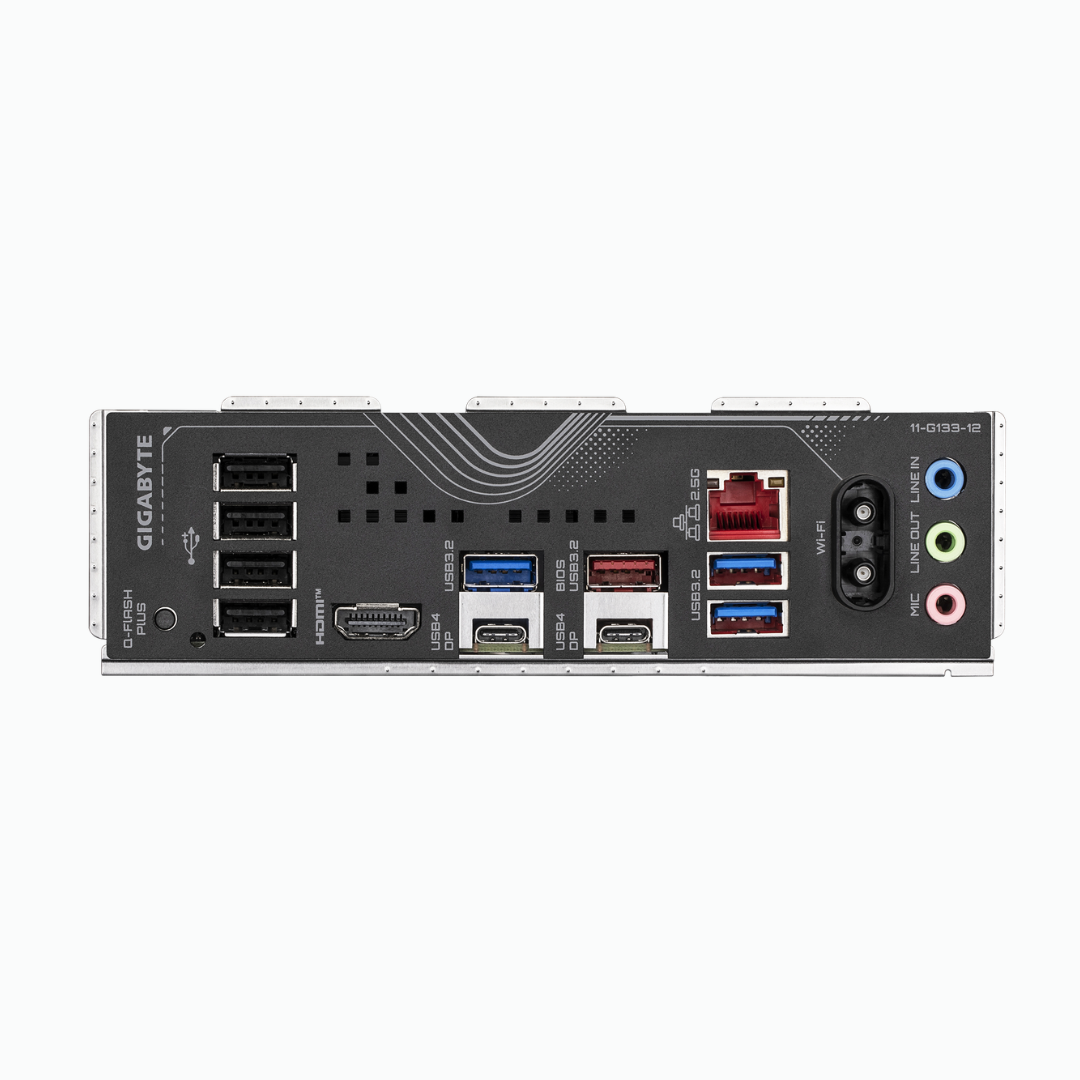

Panel E/S Trasero |
|
|
1 x Q-Flash Plus button |
|
| 2 x antenna connectors (2T2R) | |
| 1 x HDMI port* | |
| 2 x USB4® USB Type-C® ports (DisplayPort*) | |
| 1 x USB 3.2 Gen 2 Type-A port (red) | |
| 3 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| * Actual support may vary by CPU. | |
|
Controlador E/S |
iTE® I/O Controller Chip |
|
Monitorización Hardware |
|
|
Voltage detection |
|
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
|
BIOS |
1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
|
|
|
| Otras Características |
Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| Support for Q-Flash | |
| Support for Q-Flash Plus | |
| Support for Smart Backup | |
|
Bundled Software |
|
|
Norton® Internet Security (OEM version) |
|
| LAN bandwidth management software | |
|
Sistema Operativo |
|
|
Support for Windows 11 64-bit |
|
|
Formato |
|
|
ATX Form Factor; 30.5cm x 24.4cm |
| Peso | 1 kg |
|---|---|
| Dimensiones | 10 × 30 × 40 cm |
