| Chipset | AMD B850 | |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors | |
| Socket AM5 | ||
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB | |
| Memory Support DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s | ||
| Ryzen™ 9000 Series Processors max. overclocking frequency: | ||
| • 1DPC 1R Max speed up to 8400+ MT/s | ||
| • 1DPC 2R Max speed up to 6400+ MT/s | ||
| • 2DPC 1R Max speed up to 6400+ MT/s | ||
| • 2DPC 2R Max speed up to 6400+ MT/s | ||
| Supports AMD POR Speed and JEDEC Speed | ||
| Supports Memory Overclocking and AMD EXPOTM | ||
| Supports Dual-Channel mode | ||
| Supports Non-ECC, Un-buffered memory | ||
| Supports CUDIMM, Clock Driver bypass mode only* | ||
| * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. | ||
| • The DIMM slots on this motherboard only have single-sided latche. | ||
| • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. | ||
| Onboard Graphics | 1x HDMI™ | |
| Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz* | ||
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | ||
| Slot | 3x PCI-E x16 slot (Qty) | |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | ||
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | ||
| PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) | ||
| PCI_E1 slot (From CPU) | ||
| • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) | ||
| • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) | ||
| • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) | ||
| PCI_E2 slot (From B850 chipset) | ||
| • Supports up to PCIe 3.0 x1 | ||
| PCI_E3* slot (From B850 chipset) | ||
| • Supports up to PCIe 4.0 x4 | ||
| *PCI_E3 slot will run x2 speed when installing devices in the M.2_3 slot | ||
| Audio | Realtek® ALC4080 Codec | |
| 7.1-Channel USB High-Performance Audio | ||
| Supports up to 32-Bit/384 kHz playback on front panel | ||
| Supports S/PDIF output | ||
| Storage | 4x M.2 (Qty) | |
| M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices | ||
| M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices | ||
| M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices | ||
| M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | ||
| 4x SATA 6G (Qty) | ||
| M.2_1 slot (From CPU) | ||
| • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) | ||
| • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) | ||
| • Supports 2280/22110 storage devices | ||
| M.2_2 slot (From CPU) | ||
| • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) | ||
| • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600 / 8400 Series processors) | ||
| • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) | ||
| M2_3* slot (From Chipset) | ||
| • Supports up to PCIe 4.0 x2 | ||
| • Supports 2260/2280 storage devices | ||
| M2_4 slot (From Chipset) | ||
| • Supports up to PCIe 4.0 x4 | ||
| • Supports 2260/2280 storage devices | ||
| * PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. | ||
| RAID | • Supports RAID 0, RAID 1 and RAID 10* for M.2 NVMe storage devices | |
| *RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen 9000/7000 series CPU | ||
| USB | 4x USB 2.0 (Rear) | |
| 4x USB 2.0 (Front) | ||
| 1x USB 5Gbps Type A (Rear) | ||
| 4x USB 5Gbps Type A (Front) | ||
| 2x USB 10Gbps Type A (Rear) | ||
| 3x USB 10Gbps Type C (Rear) | ||
| 1x USB 20Gbps Type C (Front) | ||
| LAN | 1x Realtek® 8126 5G LAN | |
| Internal IO | 1x Power Connector(ATX_PWR) | |
| 2x Power Connector(CPU_PWR) | ||
| 1x Power Connector(PCIE_PWR 8pin) | ||
| 1x CPU Fan | ||
| 1x PUMP_SYS Fan | ||
| 6x System Fan | ||
| 1x ARGB+FAN+USB2.0 Header (JAF_2) | ||
| 2x Front Panel (JFP) | ||
| 1x Chassis Intrusion (JCI) | ||
| 1x Front Audio (JAUD) | ||
| 3x Addressable V2 RGB LED connector (JARGB_V2) | ||
| 1x RGB LED connector(JRGB) | ||
| 1x TPM pin header(Support TPM 2.0) | ||
| 4x USB 2.0 ports | ||
| 4x USB 5Gbps Type A ports | ||
| 1x USB 20Gbps Type C ports | ||
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7 | |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | ||
| Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps | ||
| Supports 802.11 a/ b/ g/ n/ ac/ ax/ be | ||
| Supports Bluetooth® 5.4**, MLO, 4KQAM | ||
| * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. | ||
| ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. | ||
| LED FEATURE | 4x EZ Debug LED | |
| 1x EZ Digit Debug LED | ||
| 1x EZ Memory Detection LED | ||

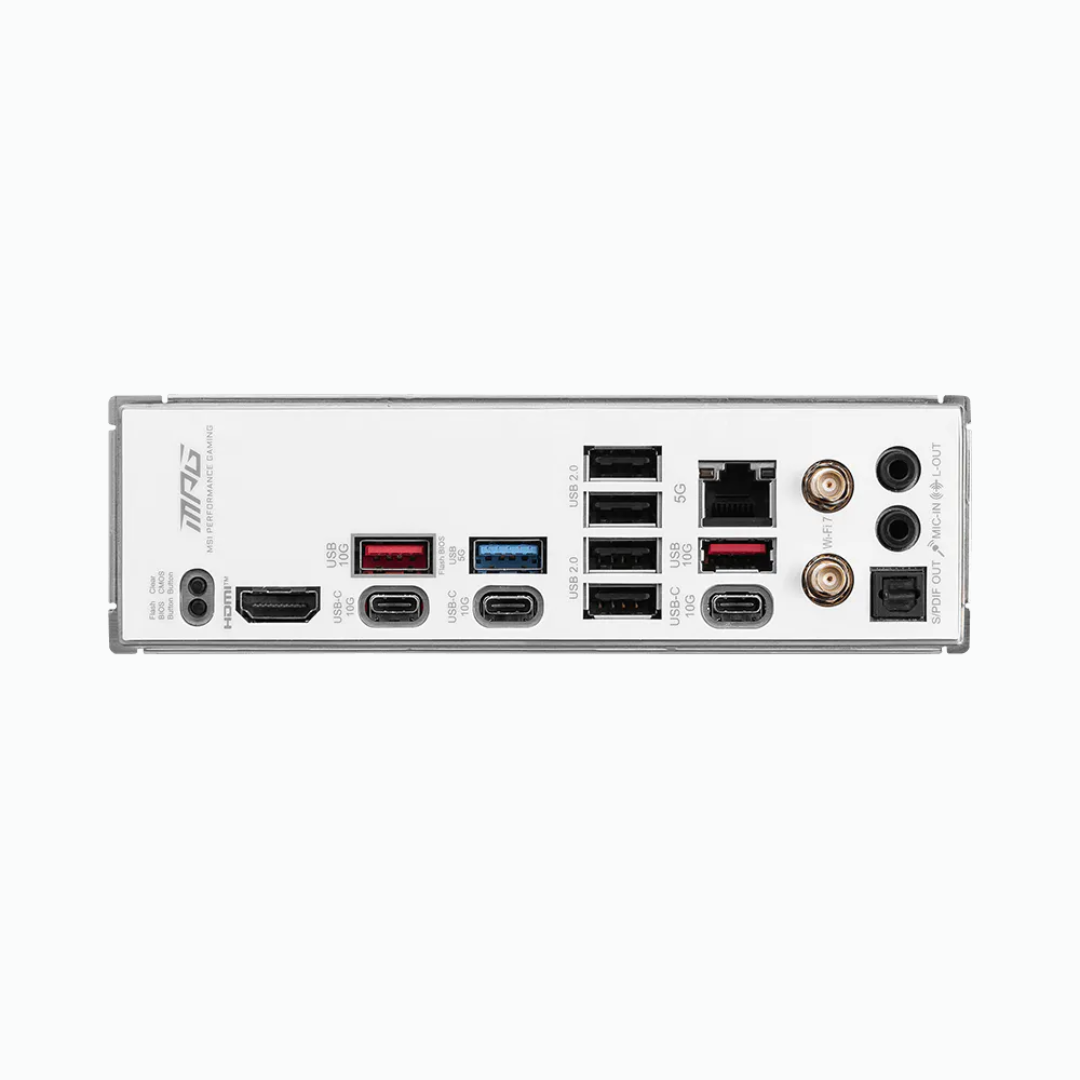

| BACK PANEL PORTS | ||
| Clear CMOS Button | ||
| USB 10Gbps Type-A | ||
| USB 5Gbps Type-A | ||
| USB 2.0 | ||
| 5G LAN | ||
| Wi-Fi / Bluetooth | ||
| Audio Connectors | ||
| Flash BIOS Button | ||
| HDMI™ | ||
| USB 10Gbps Type-C | ||
| USB 10Gbps Type-A | ||
| USB 10Gbps Type-C | ||
| Optical S/PDIF Out | ||
| OPERATING SYSTEM | Support for Windows® 11 64-bit | |
| BOX CONTENT | ||
| PCB Info | ATX | |
| 304.8mmx243.84mm |

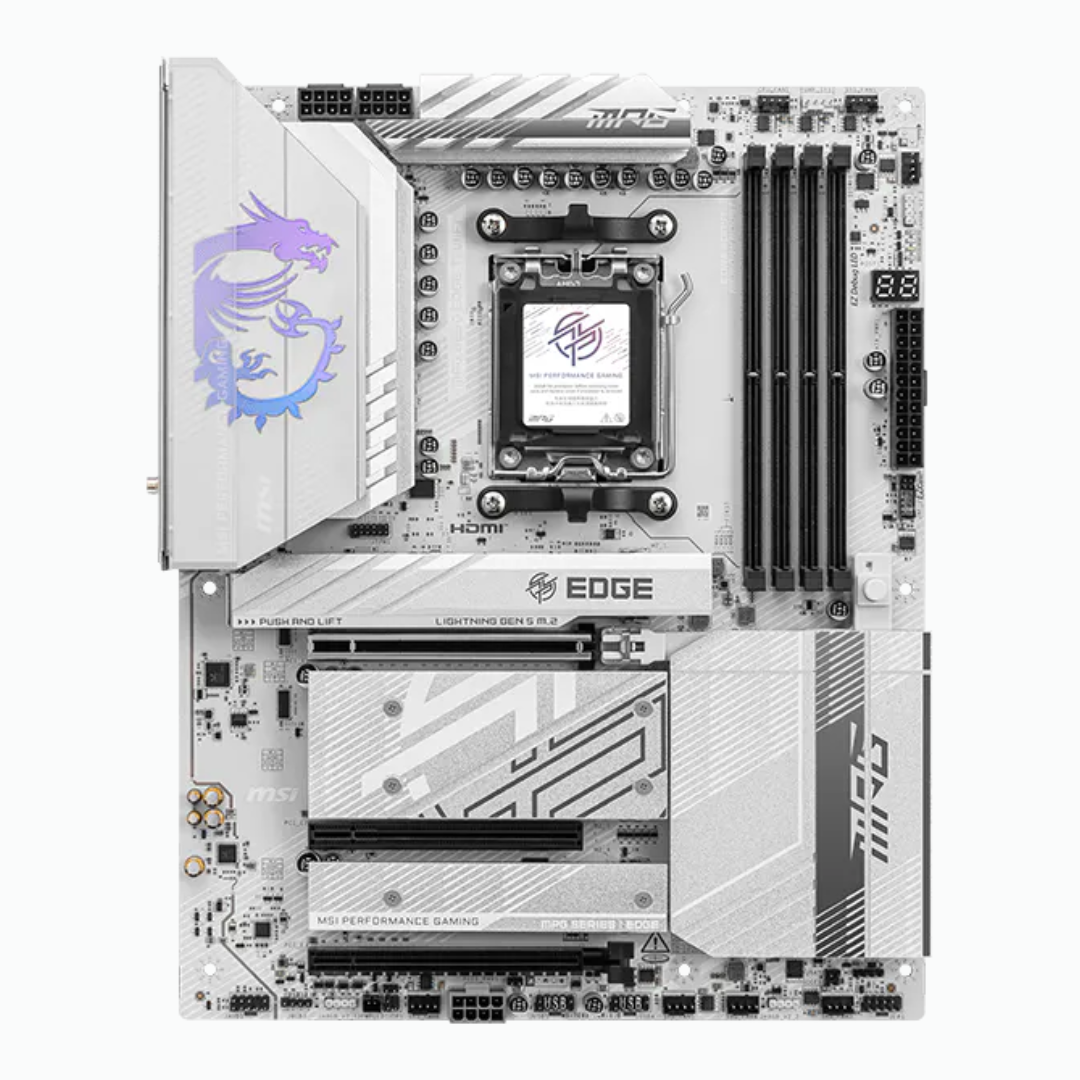

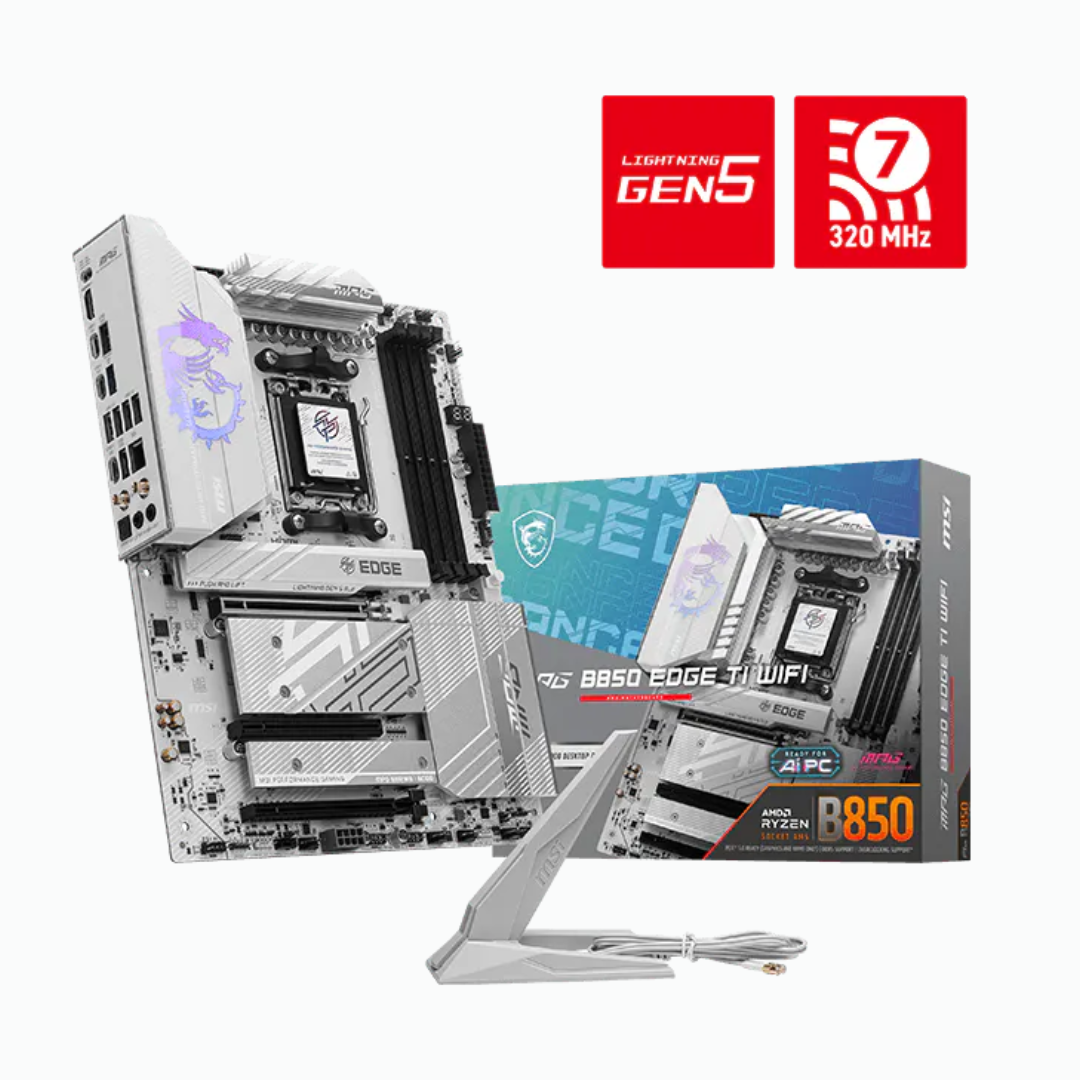

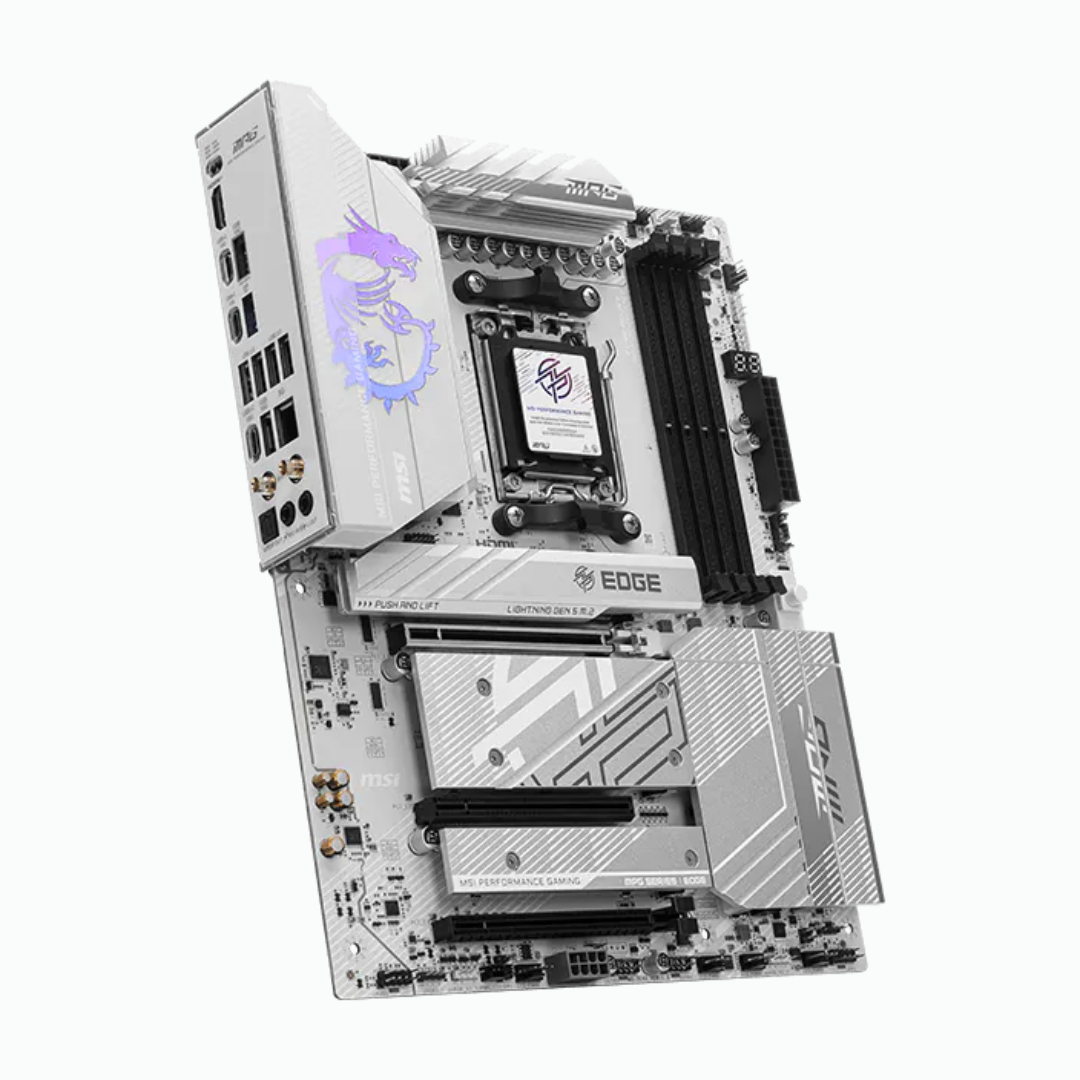

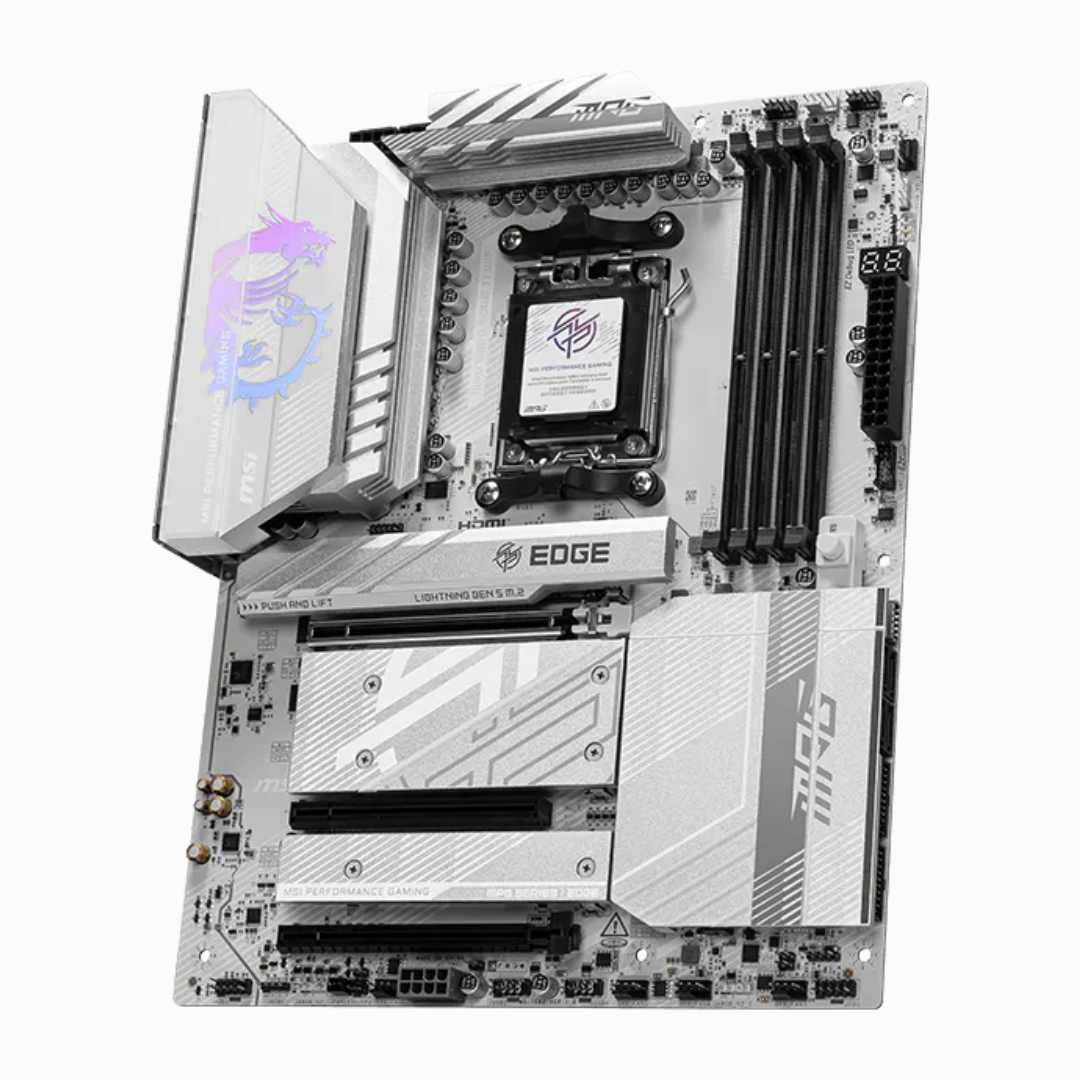

Placa Madre MSI MPG B850 EDGE TI WIFI
$349.000 El precio original era: $349.000.$299.000El precio actual es: $299.000.
| Webpay Plus | $304.980 |
| Linkify - Transferencia electrónica | $299.000 |
| Mercado Pago | $307.970 |
- Soporta procesadores de escritorio AMD Ryzen™ 9000 / 8000 / 7000 Series
- Soporta memoria DDR5, Dual Channel DDR5 8400+ MT/s (OC)
Agotado
SKU: 4711377290616
Categorías: Placa Madre, AM5, AMD
| Peso | 1 kg |
|---|---|
| Dimensiones | 10 × 20 × 30 cm |
